SCREWTECH MIF model List of miniature ball screw

2022 07/13

SCREWTECH miniature ball screw "MIF"

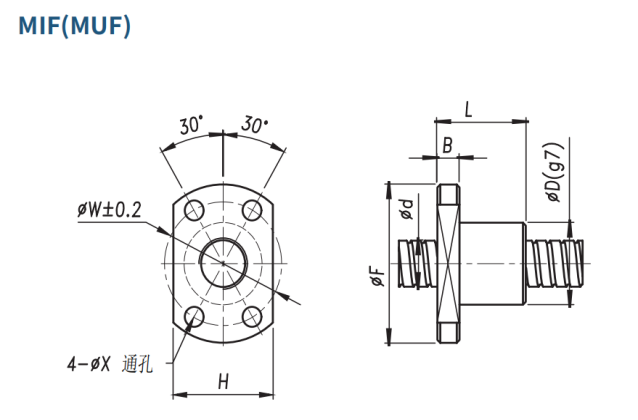

Model	d	D	F	L	B	W	H	X	Dynamic load	Static load	Axial clearance(mm)
MIF0401	4	10	20	12	3	15	14	2.9	490	700	0-0.005
MIF0501	5	10	20	12	3	15	14	2.9	530	810	0-0.005
MIF0601	6	12	24	15	3.5	18	16	3.4	580	1000	0-0.005
MIF0602	6	12	24	15	3.5	18	16	3.4	750	1200	0-0.005
MIF0801	8	14	27	16	4	21	18	3.4	780	1650	0-0.005
MIF0802	8	14	27	16	4	21	18	3.4	1500	2600	0-0.005
MIF0802.5	8	16	29	26	4	23	20	3.4	1850	3000	0-0.005
MUF0804	8	16	29	26	4	23	20	3.4	2350	3300	0-0.005

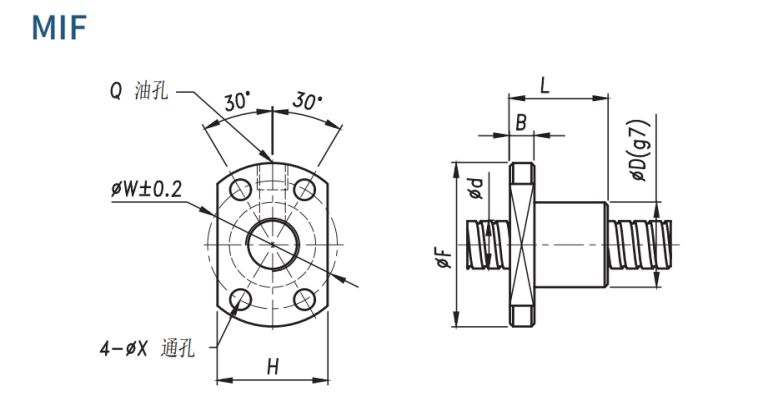

Model	d	D	F	L	B	W	H	X	Q	Dynamic load	Static load	Axial clearance(mm)
MIF1002	10	18	35	28	5	27	22	4.5	-	1500	2600	0-0.005
MIF1003	10	20	37	32	6	29	24	4.5	-	2600	5200	0-0.005
MIF1004	10	20	37	38	8	29	24	4.5	M5	3000	5200	0-0.005

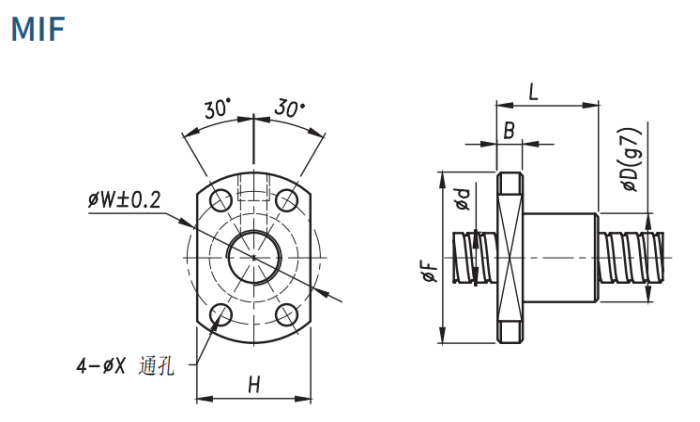

Model	d	D	F	L	B	W	H	X	Dynamic load	Static load	Axial clearance(mm)
MIF1201	12	20	37	28	5	29	24	4.5	780	1600	0-0.005
MIF1202	12	20	37	28	5	29	24	4.5	3000	6000	0-0.005
MIF1203	12	22	39	32	6	31	26	4.5	3650	9900	0-0.005
MIF1204C	12	24	40	28	6	32	25	3.5	4100	9900	0-0.005
MIF1205	12	22	43	38	8	31	26	4.5	6190	8830	0-0.005

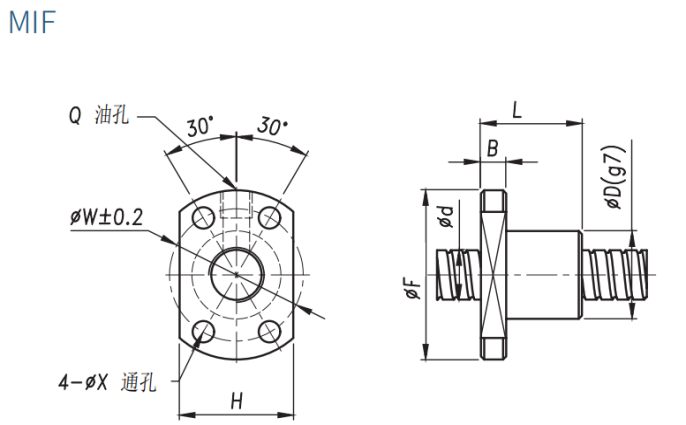

Model	d	D	F	L	B	W	H	X	Q	Dynamic load	Static load	Axial clearance(mm)
MIF1402	14	21	40	23	6	31	26	5.5	-	2890	6330	0-0.005
MIF1403	14	24	41	32	6	33	28	5.5	-	2900	4600	0-0.005
MIF1404	14	26	45	33	6	36	28	5.5	-	4500	8600	0-0.005
MIF1405	14	26	46	40	8	36	30	5.5	-	5700	11600	0-0.005
MIF1602	16	25	43	40	10	35	29	5.5	M6	3730	12000	0-0.005
MIF2002	20	30	50	40	10	40	35	5.5	M6	5810	22840	0-0.005
